Type HSL90
The pump is equipped with in-built chevron gear deceleration device . It has the properties of high transmission efficiency, low noises, stable operation, small size and compact construction. During the running, high-speed shaft can automatically adjust in horizontal direction, which makes it has balanced and reliable transmission, low friction coefficient, high lubrication, low temperature rising at power end, long-time continuous operation, etc. Input and output water valve device is designed for one integrated set in horizontal directio. The output valve core can be used as input directing part. There is only one spring for both input and output valves, so the structure is compact and simple, easy to dissemble. It has also the properties of small flow loss, stable operation and low noise. The max.crankshaft thrust force is 38KN.

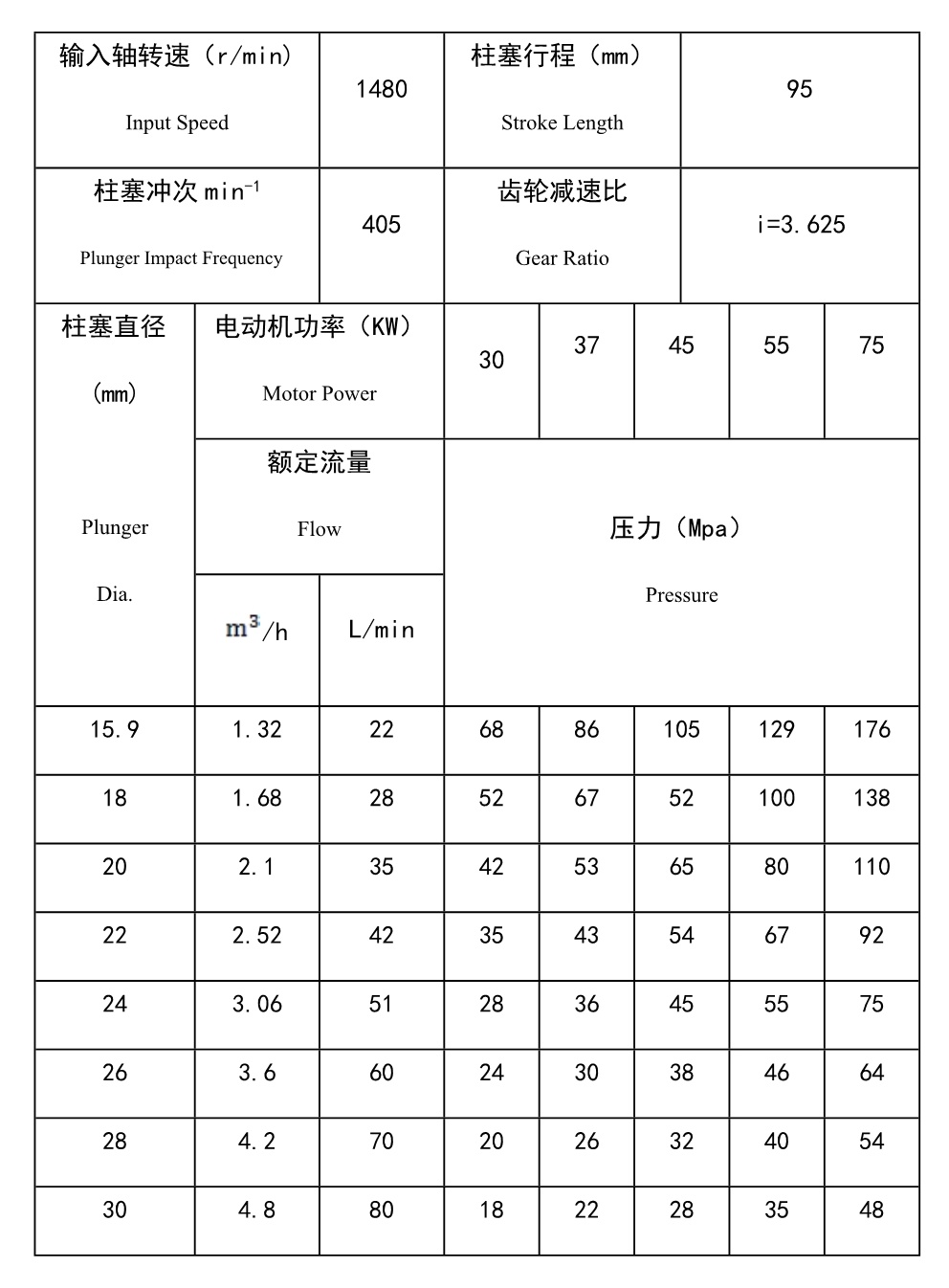

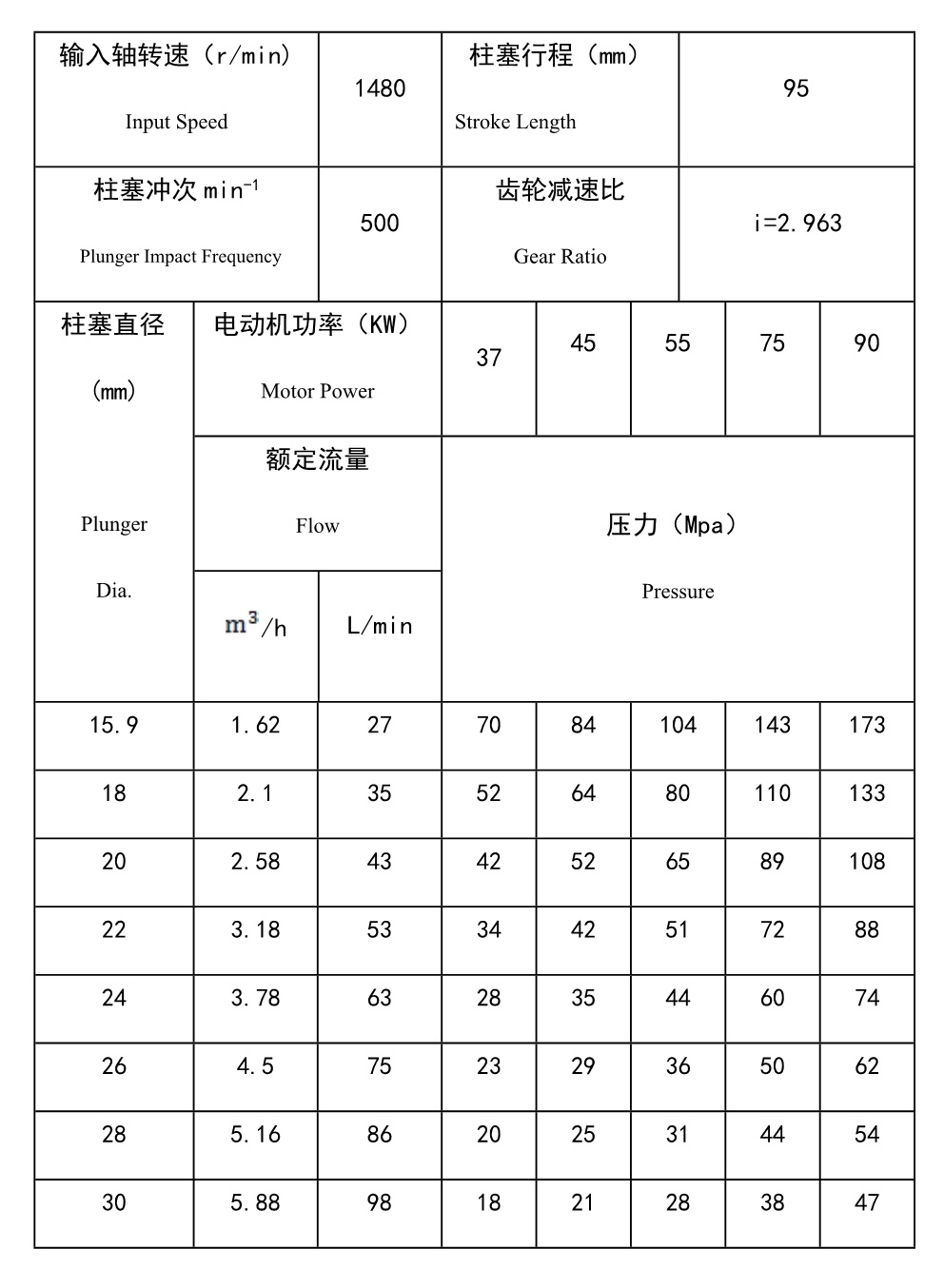

Technical Data
泵重 Pump Weight 360kg 進(jìn)口 Inlet G11/2 出口 Outlet G13/8-12牙
